RIP-2 Message Format

The basic message format for RIP-2 is also pretty much the same as it was for RIP-1, with the Version field of course set to 2, to clearly identify the message as being RIP-2. The real differences are in the individual RIP entries, as you can see in Table 121 and Figure 177.


Table 121: RIP Version 2 (RIP-2) Message Format

Field Name

Size (bytes)

Description

Command

1

Command Type: Identifies the type of RIP message being sent. A value of 1 indicates an RIP Request, while 2 means an RIP Response.

Version

1

Version Number: Set to 2 for RIP version 2.

Must Be Zero

2

Reserved: Field reserved; value must be set to all zeroes.

Route Table Entries (RTEs)

20 to 500, in increments of 20





Figure 177: RIP Version 2 (RIP-2) Message Format

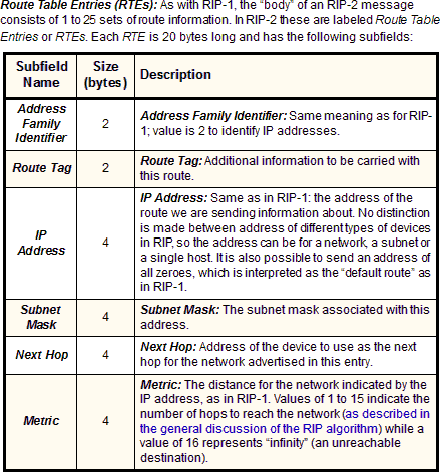

The RIP Entries of RIP-1 are called Route Table Entries (RTEs) in RIP-2; the message format can contain up to 25. The format of RTE #1 is shown here with each of its subfields (the others are summarized to save space.)




As you can see, the unused fields allow the new RIP-2 features to be implemented without changing the basic structure of the RIP entry format. This allows RIP-1 and RIP-2 messages and devices to coexist in the same network. A RIP-2 device can handle both RIP-1 and RIP-2 messages, and will look at the version number to see which version the message is. A RIP-1 device should handle both RIP-2 and RIP-1 messages the same way, simply ignoring the extra RIP-2 fields it doesn't understand.

Note: Note that if authentication is used, one of the RTEs contains authentication information, limiting the message to 24 “real” RTEs.
